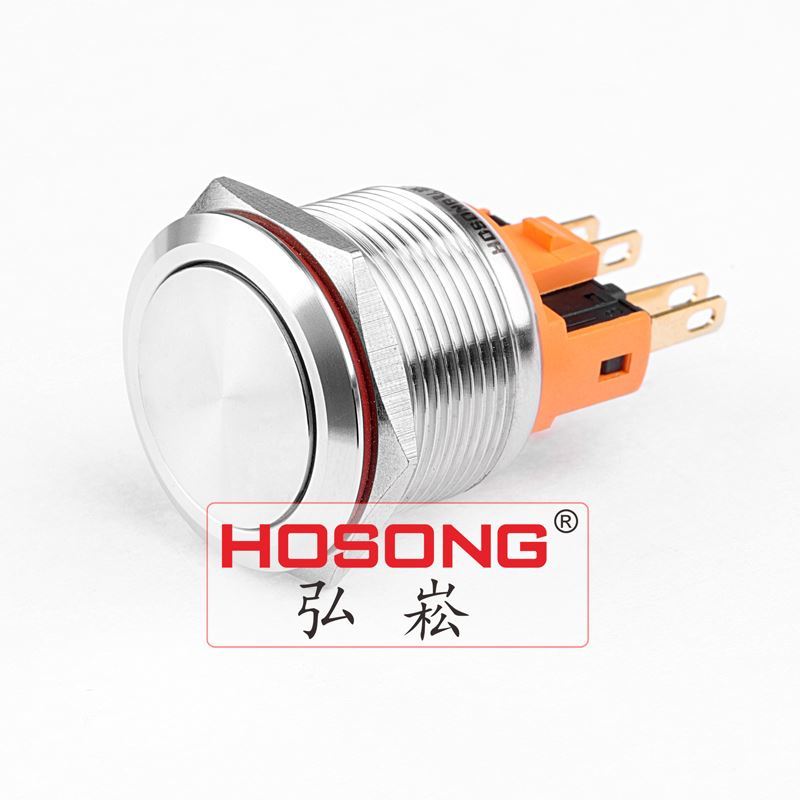

22mm Flat Head Push Button Switch

22mm Flat Head Push Button Switch

Product Brand: HOSONG Product Model: HS22A-P◇□/◎ Mounting Diameter: Φ22mm Head Shape: Flat Round Switch Configuration: 1NO1NC; 2NO2NC Operating Type: Self‑returning / Self‑locking Lighting Type: None Lighting Color: None Luminescent Voltage: None Housing Material: Brass with Chrome Plating / Stainless Steel Contact Material: Silver Alloy Rated Voltage: 3A / AC220V
22mm Flat Head Ring LED Push Button

22mm Flat Head Ring LED Push Button

Product Brand: HOSONG Product Model: HS22A-P◇□/E△▼/◎ Mounting Diameter: Φ22mm Head Shape: Flat Round Switch Configuration: 1NO1NC; 2NO2NC Operating Type: Self‑Resetting / Self‑Latching Lighting Type: Ring‑Shaped Illumination Light Color Options: Red, Green, Blue, Yellow, White, Orange, Purple, Red/Green, Red/Blue Lighting Voltage: 3V / 5V / 6V / 12V / 24V / 36V / 48V / 110V / 220V Housing Material: Chrome‑Plated Brass / Stainless Steel Contact Material: Silver Alloy Rated Current: 3A / AC 220V
22mm Black Ring LED Push Button Switch

22mm Black Ring LED Push Button Switch

Product Brand: HOSONG Product Model: HS22A-P◇□/E△▼/◎ (Custom Black) Mounting Diameter: Φ22mm Head Shape: Flat Round Switch Configuration: 1NO1NC; 2NO2NC Operating Type: Self‑returning / Self‑locking Lighting Type: Ring‑shaped Illumination Light Color: Red, Green, Blue, Yellow, White, Orange, Purple, Red/Green, Red/Blue Lamp Voltage: 3V / 5V / 6V / 12V / 24V / 36V / 48V / 110V / 220V Housing Material: Chrome‑Plated Brass / Stainless Steel Contact Material: Silver Alloy Rated Current: 3A / AC 220V
22mm Ring Power LED Push Button Switch

22mm Ring Power LED Push Button Switch

Product Brand: HOSONG Product Model: HS22A-P◇□/E+DY△▼/◎ Mounting Diameter: Φ22mm Head Shape: Flat Round Switch Configuration: 1NO1NC; 2NO2NC Operating Type: Self‑returning / Self‑locking Lighting Type: Ring Light + Power Indicator Illumination Light Color: Red, Green, Blue, Yellow, White, Orange, Purple, Red/Green, Red/Blue Lamp Voltage: 3V / 5V / 6V / 12V / 24V / 36V / 48V / 110V / 220V Housing Material: Brass with Chrome Plating / Stainless Steel Contact Material: Silver Alloy Rated Current: 3A / AC 220V

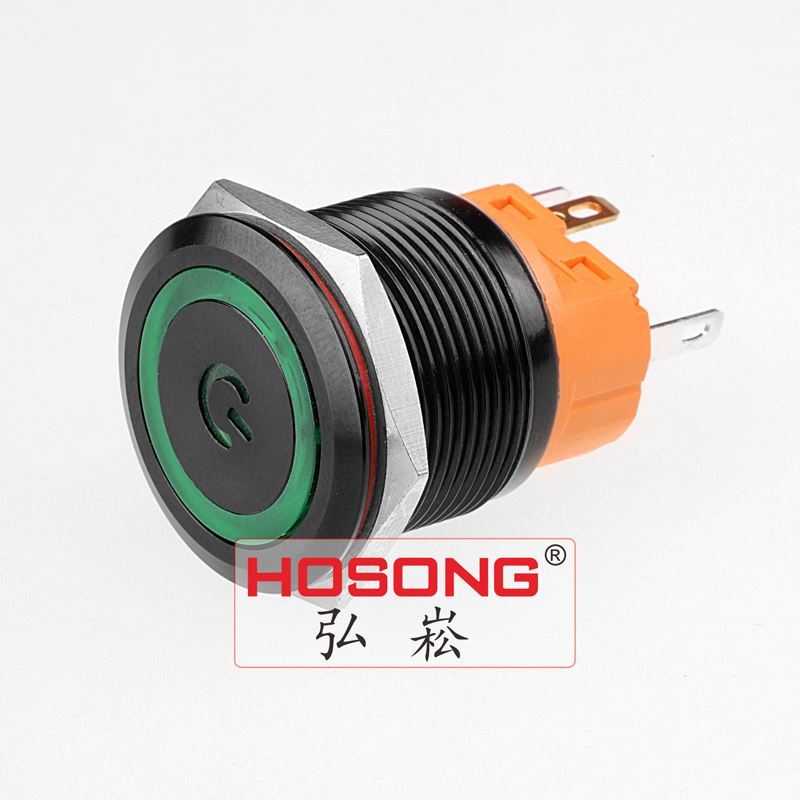

22mm Black Ring Power LED Push Button

22mm Black Ring Power LED Push Button

Product Brand: HOSONG Product Model: HS22A-P◇□/E+DY△▼/◎ (Custom Black) Mounting Diameter: Φ22mm Head Shape: Flat Round Switch Configuration: 1NO1NC; 2NO2NC Operating Type: Self‑returning / Self‑locking Lighting Type: Ring Light + Power Indicator Illumination Light Color: Red, Green, Blue, Yellow, White, Orange, Purple, Red/Green, Red/Blue Lamp Voltage: 3V / 5V / 6V / 12V / 24V / 36V / 48V / 110V / 220V Housing Material: Brass with Chrome Plating / Stainless Steel Contact Material: Silver Alloy Rated Current: 3A / AC 220V
22mm Flat Head Push Button Switch

22mm Flat Head Push Button Switch

Product Brand: HOSONG Product Model: HS22B-P◇□/◎ Mounting Diameter: Φ22mm Head Shape: Flat Round Switch Configuration: 1NO1NC (1 Normally Open, 1 Normally Closed) Operating Type: Self‑Resetting / Self‑Latching Lighting Type: None Lighting Color: None Lighting Voltage: None Housing Material: Brass with Chrome Plating / Stainless Steel Contact Material: Silver Alloy Rated Voltage: 3A / AC 220V

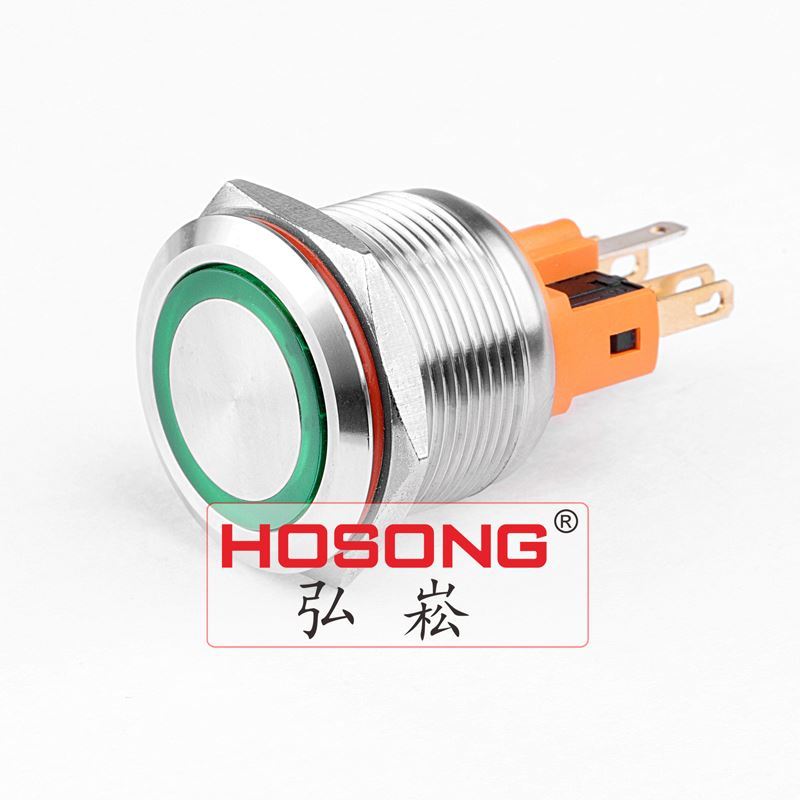

22mm Ring LED Push Button Switch

22mm Ring LED Push Button Switch

Product Brand: HOSONG Product Model: HS22B-P◇□/E△▼/◎ Mounting Diameter: Φ22mm Head Shape: Flat Round Switch Configuration: 1NO1NC (1 Normally Open, 1 Normally Closed) Operation Type: Self‑Resetting / Self‑Latching Lighting Type: Ring‑Shaped Illumination Light Color Options: Red, Green, Blue, Yellow, White, Orange, Purple, Red/Green, Red/Blue Operating Voltage: 3V / 5V / 6V / 12V / 24V / 36V / 48V / 110V / 220V Housing Material: Brass with Chrome Plating / Stainless Steel Contact Material: Silver Alloy Rated Current: 3A / AC 220V
22mm Ring Power LED Push Button

22mm Ring Power LED Push Button

Product Brand: HOSONG Product Model: HS22B-P◇□/E+DY△▼/◎ Mounting Diameter: Φ22mm Head Shape: Flat Round Switch Configuration: 1NO 1NC (1 Normally Open, 1 Normally Closed) Operation Type: Self‑Resetting / Self‑Latching Lighting Type: Ring Light + Power Indicator Illumination Light Color Options: Red, Green, Blue, Yellow, White, Orange, Purple, Red/Green, Red/Blue Operating Voltage: 3V / 5V / 6V / 12V / 24V / 36V / 48V / 110V / 220V Housing Material: Chrome‑Plated Brass / Stainless Steel Contact Material: Silver Alloy Rated Current: 3A / AC 220V

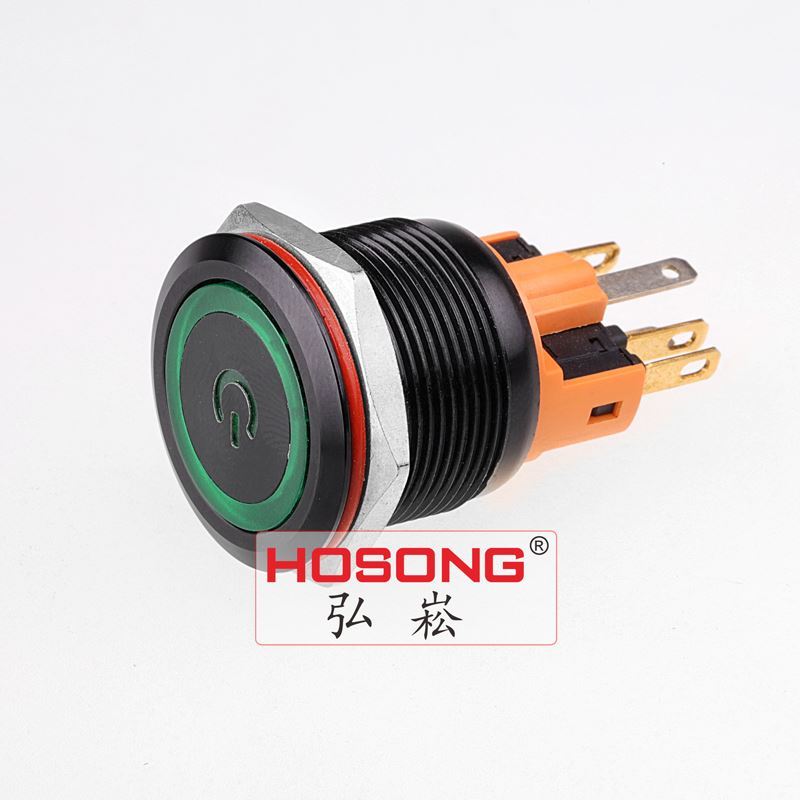

22mm Black Ring Power LED Button

22mm Black Ring Power LED Button

Product Brand: HOSONG Product Model: HS22B-P◇□/E+DY△▼/◎ (Custom Black) Mounting Diameter: Φ22mm Head Shape: Flat Round Switch Configuration: 1NO1NC (1 Normally Open, 1 Normally Closed) Operating Type: Self‑Resetting / Self‑Latching Lighting Type: Ring Light + Power Indicator Illumination Light Color Options: Red, Green, Blue, Yellow, White, Orange, Purple, Red/Green, Red/Blue Lighting Voltage: 3V / 5V / 6V / 12V / 24V / 36V / 48V / 110V / 220V Housing Material: Chrome‑Plated Brass / Stainless Steel Contact Material: Silver Alloy Rated Current: 3A / AC 220V

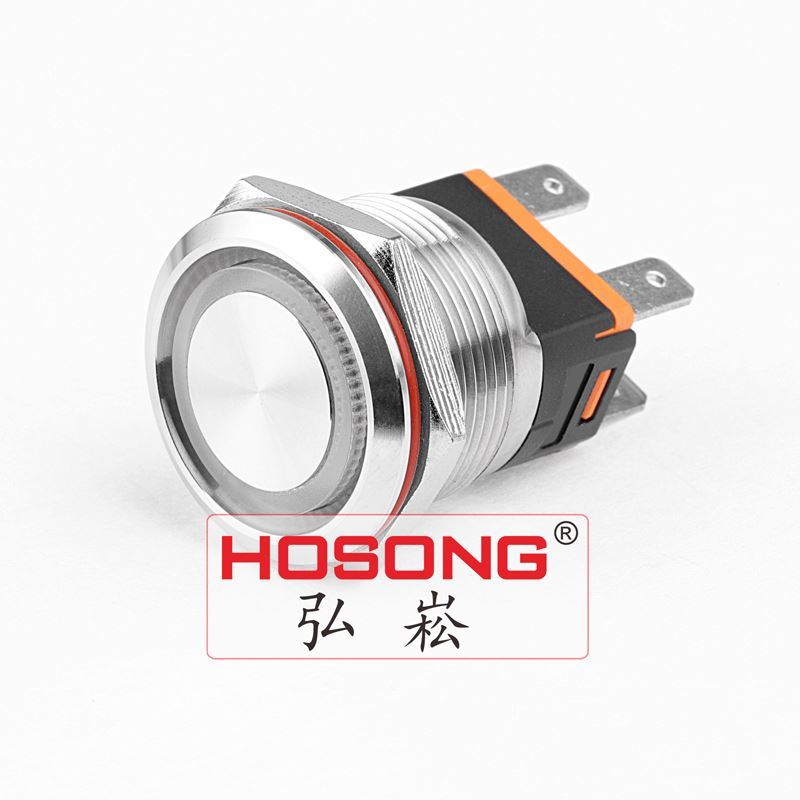

22mm High Current Ring LED Button

22mm High Current Ring LED Button

Product Brand: HOSONG Product Model: HS22C-P20□/E△▼/◎ (High Current) Mounting Diameter: Φ22mm Head Shape: Flat Round Switch Configuration: 2NO (2 Normally Open) Operating Type: Self‑Resetting / Self‑Latching Lighting Type: Ring‑Shaped Illumination Light Color: Red, Green, Blue, Yellow, White, Orange, Purple, Red/Green, Red/Blue Lamp Voltage: 3V / 5V / 6V / 12V / 24V / 36V / 48V / 110V / 220V Housing Material: Chrome‑Plated Brass / Stainless Steel Contact Material: Silver Alloy Rated Current: 15A / AC 220V
22mm High Current Power LED Button

22mm High Current Power LED Button

Product Brand: HOSONG Product Model: HS22C-P20□/E+DY△▼/◎ (High Current) Mounting Diameter: Φ22mm Head Shape: Flat Round Switch Configuration: 2NO (2 Normally Open) Operating Type: Self‑Resetting / Self‑Latching Lighting Type: Ring Light + Power Indicator Illumination Light Color: Red, Green, Blue, Yellow, White, Orange, Purple, Red/Green, Red/Blue Lighting Voltage: 3V / 5V / 6V / 12V / 24V / 36V / 48V / 110V / 220V Housing Material: Chrome‑Plated Brass / Stainless Steel Contact Material: Silver Alloy Rated Current: 15A / AC 220V
